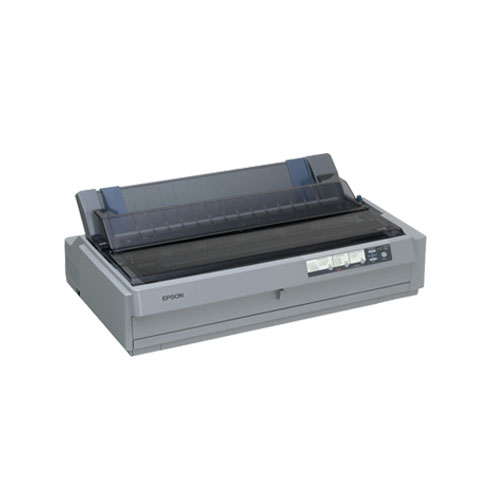

Epson Dot Matrix Printer LQ-2190

Epson Dot Matrix Printer LQ-2190

Hot
-2%

Epson Dot Matrix Printer LQ-2190

৳ 58,500.00 ৳ 57,500.00

Quick Overview

Model:Epson Dot Matrix Printer LQ-2190

Dot Matrix Printer-printed fast,

reducing waiting time with long life reliability.

  • Description
  • Size Guide
  • Additional information
  • Reviews (0)

Description

Brand:Epson

Functions: Print
Technology Impact :dot matrix
Number of Pins :24 pins
Speed Print Speed: 10 cpi, 12 cpi, 15 cpi, 17 cpi

(condensed) 20 cpi (condensed),

HIGH SPEED DRAFT:480 cps, 576 cps,

DRAFT : 360 cps, 432 cps, 540 cps, 308 cps, 360 cps,

LETTER QUALIT0Y: 120 cps, 144 cps, 180 cps, 205 cps, 240 cps
MTBF 20000 Power on hours (POH) (25% Duty)
Print Head Life 400 million strokes/wire
Character Sets 14 international character sets and

one legal character sets, 1 italic and 12 graphical

character tables: Italic table, PC 437 (US Standard Europe),

PC850 (Multilingual), PC860 (Portuguese), PC861

(Icelandic), PC863 (Canadian-French), PC865 (Nordic),

BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Supported Bitmap Fonts EPSON DRAFT / EPSON COURIER 10

cpi, 12 cpi, 15 cpi, EPSON ROMAN / EPSON SANS SERIF

10 cpi, 12 cpi, 15 cpi, Proportional, EPSON PRESTIGE 10 cpi, 12 cpi,

EPSON SCRIPT / OCR-B / ORATOR / ORATOR-S / 10 cpi,

EPSON SCRIPT C Proportional
Supported Scalable Fonts EPSON ROMAN/SANS SERIF / ROMAN T /

10.5 pt., 8 pt. – 32 pt. (every 2 pt.), SANS SERIF H
Barcode Sets EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E,

Code 39, Code 128, POSTNET, Coda bar (NW-7),

Industrial 2 of 5, Matrix 2 of 5
Media Cut Sheet Single: Entry: Front: WIDTH 100 – 420 mm

(3.9 – 16.5”), LENGTH 148 – 420 mm (5.8 – 16.5“),

THICKNESS 0.065 – 0.14 mm (0.0025 – 0.0055”),

Entry: Rear: Width-100 – 420 mm (3.9 – 16.5“),

Length: 100 – 420 mm (3.9 – 16.5”),

Thickness: 0.065 – 0.14 mm (0.0025 – 0.0055“)
Envelopes Media Entry: Rear, Envelopes (No.6)-

WIDTH x LENGTH 165 mm (6.5”) x 92 mm (3.6”),

TOTAL THICKNESS 0.16 – 0.52 mm (0.0063 – 0.020”),

Envelop (No. 10) WidthxLength: 241 mm (9.5”)

x 105 mm (4.1”), Total Thickness: 0.16 – 0.52 mm (0.0063 – 0.020”)
Continuous Paper Entry: Front, Rear, Bottom,

WIDTH x LENGTH x TOTAL THICKNESS 101.6 – 406.4 mm (4 – 16”)

x 101.6 – 558.8 mm (4 – 22”) x 0.065 – 0.46 mm (0.0025 – 0.018“)
Roll Media Handling Entry: Rear: WIDTH x DIAMETER x

THICKNESS 216 mm (8.5”) x 127 mm (5“) x 0.07 – 0.09 mm (0.0028 – 0.0035”)
Multipart Copy 1 original + 5 copies
Print Direction Bi-directional with logic seeking,

Manual Insertion (Front or rear in, top out),

Push Tractor (Front or rear in, top out), Pull Tractor

(Front or rear or bottom in, top out)
Emulation ESC/P2 and IBM PPDS emulation
Memory Input Data Buffer: 128 KB
Supported Consumables Fabric Ribbon

Cartridge, Color: Black, Ribbon Life: Approx. 8 million characters
Interface Bi-directional parallel interface

(IEEE-1284 nibble mode supported),

USB 2.0 (Full speed), Type B I/F Level 2 (Optional)
Control Panel 6 switches and 10 LEDs are located on teh

panel, Noise: 54dB
Voltage AC 120V, AC 220 V to 240 V
Rated Frequency: 50 to 60 Hz
Power Consumption: Approx 46W (ISO/IEC 10561 Letter pattern),

Approx: .W in sleep mode, 0 W in powered off mode,

Energy Star Compliant
OS Compatibility: Microsoft®, Windows®200/XP/Vista/7
Environment Temperature: 5 to 35º C (Operating)

15 to 25ºC (Opeating), 10 to 80% RH (Opeating), 30 to 60% RH (Operating)
Dimension WxDxH: 639mmx402m,mx256mm
Weight: 13.0 Kgs
