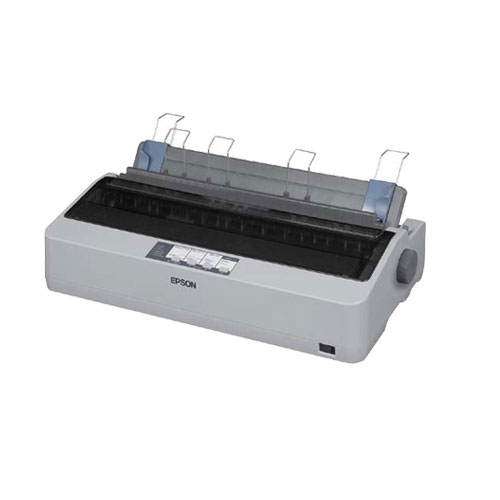

Epson Dot Matrix Printer LQ-1310

Epson Dot Matrix Printer LQ-1310

Hot

Epson Dot Matrix Printer LQ-1310

CALL FOR PRICE

Quick Overview

Model:Epson Dot Matrix Printer LQ-1310

Maximise productivity with a fast print speed

of up to 416 characters per second (12 cpi)

  • Description
  • Size Guide
  • Additional information
  • Reviews (0)

Description

Brand:Epson

Functions:Print
Technology:Impact dot matrix
Number of Pins:24 pins
Speed Print Speed : 10 / 12 cpi , 347 / 416 cps , Draft : 10 / 12 /

15 cpi 260 / 312 / 390 cps, Condensed : 17 / 20 cpi 222 / 260 cps,

LQ : 10 / 12 / 15 cpi, 86 / 103 / 129 cps
MTBF Approx. 10,000 POH (25% Duty)
Print Head Life Approx. 400 million strokes/wire
Character Sets 14 international character set ;

13 Character Tables + 5 Indian Tables; Italic, PC 437,

PC850,PC 860, PC 861, PC 863, PC 865, Abicomp, BRASCII,

Roman 8, ISO Latin 1, PC 858, ISO 8859-15,

ISCII, PC ISCII, EA ISCII, TAB TAMIL 99, TAM TAMIL 99
Supported Bitmap Fonts Epson Draft: 10, 12, 15

cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional;

Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12

cpi; Epson Script, OCR-B,

Orator & Orator-S: 10cpi; Epson Script

C: Proportional Indian font (Proportional) : CDAC D
Supported Scalable Fonts:Epson Roman,

Epson San Serif, Epson Roman T & Epson San Serif

H: 10.5pt., 8pt. – 32pt.(every 2pt.)
Barcode Sets EAN-13, EAN-8, Interleaved 2 of 5,

UPC-A, UPC-E, Code 39, Code 128, Postnet
Media Cut Sheet Cut Sheet (Manual Insertion)

Length : 100 ~ 364mm, Width : 148 ~ 420 mm, Thickness : 0.065 ~ 0.14 mm
Continuous Paper Manual Insertion : Top in, Top out ;

Push Tractor, Pull Tractor, Cut Sheet Feeder : Rear in, Top out
Multipart Copy Original:+ 3 copies
Print Direction Bi-directional with logic seeking
Emulation ESC/P2 and IBM PPDS emulation
Memory Data Buffer: 128KB
Supported Consumables Ribbon

Cartridge (Black) : 3 million characters S015634
Interface Bi-directional parallel interface

(IEEE-1284 nibble mode supported) Serial Interface; USB 2.0 Full Speed
Control Panel:4 switches and 5 LEDs
Voltage:AC 120V / AC 220 – 240V
Rated Frequency:50Hz ~ 60Hz
Power Consumption Approx. 24W (ISO/IEC 10561 Letter pattern),

(ENERGY STAR compliant)
Environment Temperature : 5 ~ 35°C , Humidity : 10 ~ 80 % RH
Dimension:537 x 355 x 199 mm (Width x Depth x Height)
Weight:6kg
