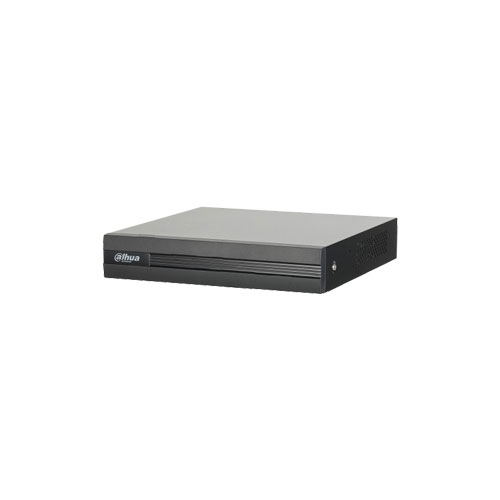

DAHUA XVR1B08H 08 Channel Penta-brid Digital Video Recorder
CALL FOR PRICE
Features
- Model: XVR1B08H
- H.265+/H.265 dual-stream video compression
- The long transmission distance over coax cable
- Internal HDD SATA: Up to 6TB
- Supports HDCVI/AHD/TVI/CVBS/IP
- Description
- Our Facilities
- Our Services
- How To Order
- Reviews (0)
Description
| Specification | Details |
|---|---|
| Model | Dahua XVR1B08H-I 8 Channel Penta-brid 5M-N/1080p Cooper DVR |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Audio and Video | IP Camera Input: 8+2 each channel up to 12MP, Two-Way Talk, Reuse audio in/out, RCA |
| Display | Interface: 1 HDMI, 1 VGA; Resolution: 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4; When IP extension mode enabled: 4CH: 1/4/6 |
| OSD (On-Screen Display) | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | Compression: H.265+/H.265/H.264+/H.264; Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF; Record Rate: Main Stream: 4CH: 1st channel 5M-N (1~10fps), Sub Stream: CIF/QCIF (1~15fps); Bit Rate: 32Kbps ~ 6144Kbps per channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min); Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | Trigger Event: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips; Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback and Backup | Sync Playback: 4CH: 1/4; Search Mode: Time/Date, Alarm, MD, Exact Search (accurate to second); Playback Functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next/Previous File/Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom; Backup Mode: USB Device/Network |
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Network | Interface: 1 RJ-45 Port (100M); Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smartphone Compatibility | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Storage | Internal HDD: 1 SATA Port, up to 6TB capacity |
| Auxiliary Interface | USB: 2x USB 2.0 |
| Power | Power Supply: DC12V/1.5A; Power Consumption: <10W |
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0~90% RH |
| Dimensions | 197mm x 192mm x 41mm (7.8“ x 7.6” x 1.6“) |
| Net Weight | 0.54 kg |
Dahua XVR1B08H-I 8 Channel Penta-brid 5M-N/1080p Cooper DVR
DAHUA XVR1A08 Digital Video Recorder supports HDCVI/AHD/TVI/CVBS/IP video inputs with H.264 video compression. This 8 Channel penta-brid recorder also has maximum full HD resolution with 24/48Mbps Incoming Bandwidth. The storage capacity of 1TB to 6TB provides full freedom of usability. It can auto recognize the signal of the front-camera without any setting. It makes operation more friendly and convenient. The XVR supports up to 6MP HDCVI camera and 6MP IP camera input. With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. Besides, it provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed. This function helps you get more motion to detect video during a short time through drawing a region when playback. It is very useful in case of emergencies.
