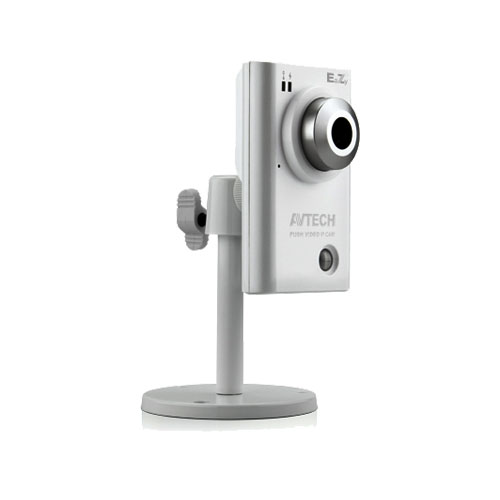

Avtech AVN701 IP Camera
Quick Overview
Image Sensor 1/3″ HR image sensor
Min. Illumination 0.25 Lux / F2.0
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1 / 60 (1/50) to 1 / 900,000 sec
- Description
- Our Facilities
- Our Services
- How To Order
- Reviews (0)
Description
| Short: | Specification |
|---|---|
| Brand: | Avtech |
| MODEL: | AVN701 |
| Eazy Networking: | No network knowledge required |
| Push Video: | Event Alert under five seconds |
| Service Cloud Data Compression: | H.264 / MPEG4 / MJPEG |
| Streaming: | Video Multiple 3 (H.264, MJPEG, MPEG4) |
| PORT LAN: | RJ45 |
| LAN Speed: | 10/100 Based-T Ethernet |
| Supported Protocols: | DDNS, PPPoE, DHCP, NTP, SNTP, TCP / IP, ICMP, SMTP, FTP, HTTP, HTTPS, RTP, RTSP, RTCP, UPnP, Bonjour, DNS, IGMP, QoS |
| ONVIF Compatible: | Yes |
| Maximum frame rate: | NTSC: 30, PAL: 25 |
| Number of simultaneous connections: | 5 |
| Security: | Cloud User account and password, IP / MAC |
| filtering, Authentication: | Digest |
| Remote Access: | EagleEyes under SmartPhone iOS /Android, Internet Explorer on Windows |
| Image Sensor:: | HR 1/3” |
| Video Resolution: | VGA, D1, CIF |
| Minimum Brightness: | 0.25 Lux / F2.0 |
| Exposure: | 1/60 (1/50) to 1 / 900,000 |
| Signal / Noise Ratio (S/N): | More than 48dB (AGC off) |
| Objective: | f3.6mm / F2.0 |
| Angle of view: | 62.7° |
| White Balance: | ATW |
| AGC: | Auto mode |
| IRIS: | AES facilities |
| Fill Light: | No |
| Infrared LED: | 0ui |
| IR Shift: | No |
| PIR sensor (human presence): | Yes, detection angle: 76°, 6x2meters zone at 30°C |
| Storage Unit: | Internal: 10MB |
| Audio Features: | Microphone: Yes, Speaker: No |
| Power Supply: | 5V / 0.5A (± 10%) |
| Environmental Conditions: | Working Temperature: -0°C to 40°C |
| Alarm System: | Alarm Input: Yes, Alarm Out to Others: Yes |
| Mobile Surveillance: | iPad, iPhone & Android |
| Detection Features: | Audio Detection: Not RTC (real-time clock): Yes Motion Detection: Yes |
| PTZ (Pan / Tilt / Zoom): | Digital: No |
| Notification Event: | FTP / Email / Push Video / Push Message |
| Browser Requirements: | Pentium 4 CPU 1.3 GHz or higher, or AMD equivalent |
| Warranty: | Yes |
DESCRIPTION:
Camera IP AVN-701 EZ Easy Networking, push video.
Monitor anytime and anywhere Eazy Networking: No network knowledge is required Push Video. Event Alert under five seconds Service Cloud Data Compression: H.264 / MPEG4 / MJPEG. Streaming: Video Multiple 3 (H.264, M JPEG, MPEG4) (encoding modes, IPS, Resolution).
PORT LAN: RJ45. LAN Speed 10/100 Based-T Ethernet. Supported Protocols: DDNS, PPPoE, DHCP, NTP, SNTP, TCP / IP, ICMP, SMTP, FTP, HTTP, HTTPS, RTP, RTSP, RTCP, UPnP, Bourbon, DNS, IGMP, QoS. ONVIF Compatible: Yes. Maximum frame rate: NTSC: 30, PAL: 25. Number of simultaneous connections: 5. Security: Cloud User account and password. IP / MAC filtering. Authentication: Digest. Remote Access: EagleEyes under SmartPhone iOS / Android, Internet Explorer on Windows.
Camera. Image Sensor: HR 1/3 “Video Resolution VGA :, D1, CIF Minimum Brightness:.. 0.25 Lux / F2.0 Exposure. 1/60 (1/50) to 1 / 900,000 dry Ratio S / N (Signal / Noise). More than 48dB (AGC off) Objective:. f3.6mm / F2.0 Angle of view:. 62.7 ° white Balance. ATW AGC. Auto mode. IRIS: AES facilities Fill Light:.. No Infrared LED. 0ui IR Shift. No PIR sensor (sensor human presence.): Yes detection angle 76 °, 6x2mètres zone at 30 ° C storage Unit. internal: 10MB Microphone Yes Speaker: No power supply (± 10%): 5V / 0.5A working temperature: -0 ° ~ 40 ° Extension Alarm: Alarm Input Yes – Alarm Out to Others.
Mobile Surveillance: iPad, iPhone & Android Detection Audio. Not RTC (real time clock). Yes Motion Detection: Yes. PTZ (Pan / Tilt / Zoom) Digital:.. No Notification Event: FTP / Email / Push Video . / Push Message Browser requirements: Pentium 4 CPU 1.3 GHz or higher, or AMD equivalent.
